DC 12/24/48V-BLDC 6-60V 400W/3 Phase-Brushless-Motor-Controller Driver-Board
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | Unbranded |
| MPN | Does Not Apply |

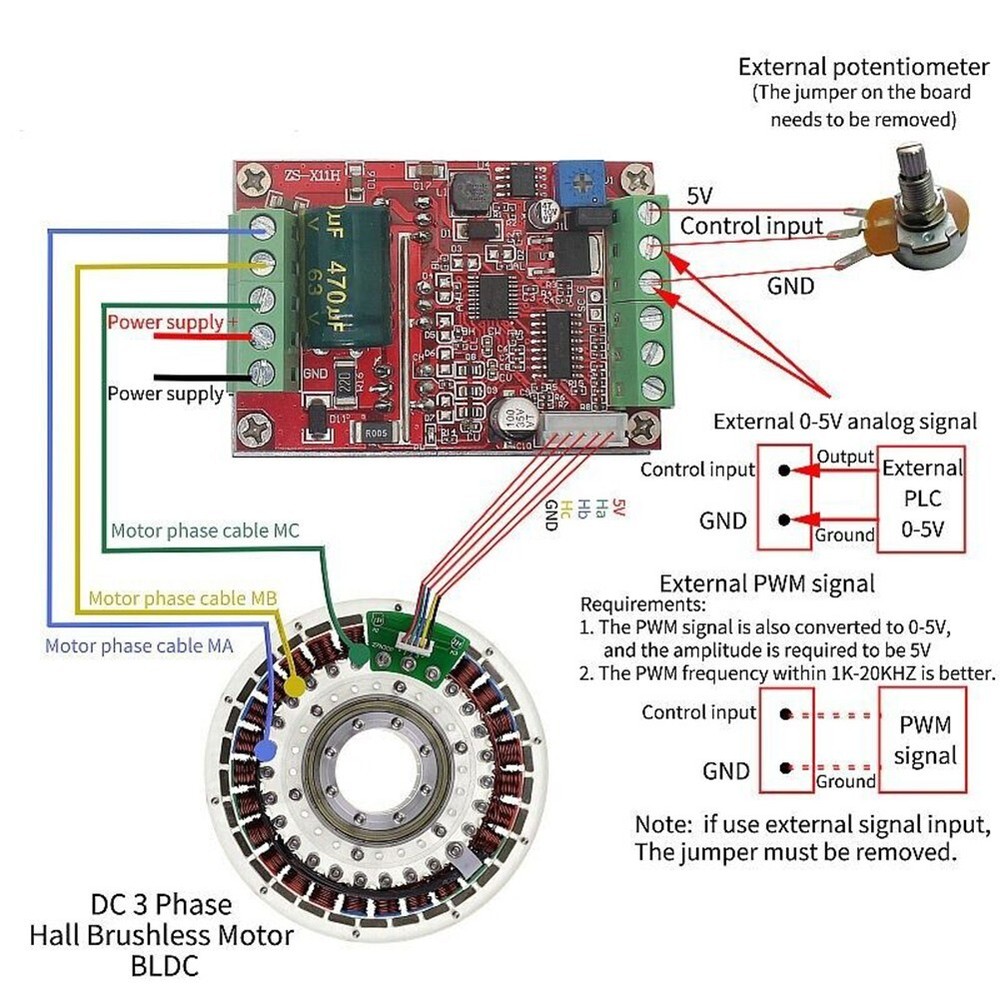

Product Description Features:* Brand new and high quality* Made of high quality materials, sturdy and * MA MB MC phase line output is connected to the motor* 5V GND motherboard comes with 5V power supply (current does not exceed 30MA)* VCC GND motor main power supply (external DC power supply)* SC speed pulse signal output* Forward and reverse control interface (can also be connected to an external switch)* VR speed control signal input (the onboard potentiometer speed control can also be connected to 0-5V analog analog PWM duty cycle to support dual signal input speed control)* Ha Hb Hc +5V GND Hall signal power input. Generally, motors with Hall have five corresponding lines.Full patch process performance is stable with forward and reverse functionsTip:After receiving the goods, there are generally 5 Hall wiring lines on the brushless motor. Two of them are Hall power lines. Three Hall signal lines must be distinguished. In particular, the power cord must not be connected incorrectly. The three-phase line sequ ence on the board must be consistent with the three-phase line sequ ence on the motor drive board to work properly. If you dont know the definition of the Hall line, you can debug low voltage and low current when power is first applied. Change the order of the Hall wires until they work normally. Do not use high current or high voltage for debugging. If the Hall wires are not connected in order, there is a risk of damaging the MOS tube if the Hall wires are not connected in order. If the three Hall signal wires are used, the motor runs smoothly. ,smooth. Smooth start at low speed and high torque. If the three Hall signal wires are not connected, there are the following characteristics: 1. The motor cannot start normally or is difficult to start (sometimes it is necessary to manually turn the motor to start) 2. The motor starts to vibrate and is out of power.Motherboard specifications:Product name: 400W brushless Hall DC motor driverModel: ZS-X11D1Working voltage: 9-60VMaximum current: rated 16A, peak 20AMaximum power: 400WOvercurrent protection: yesProduct size: length 63MM*width 45MM*height 28MMWeight: approximately 93 grams.Precautions:1. The power supply circuit on the motherboard does not have a fuse, and the built-in self-energization will cause permanent damage to the chip on the board (not even allowed for 2 seconds).2. During normal , the motor output has sampling overcurrent protection. Since the module has high power and current, please do not short-circuit the module when it is not working properly. In the event of a short circuit, there is a possibility of wire burnout. Please use a small current and low voltage test for the first wiring test. After the test is OK, use a large current and high voltage. Because it is a bare board module sold, pay attention to the insulation of the wiring line and do not allow strong voltage to contact the board. parts.3. Do not connect a motor whose voltage and current are obviously inconsistent with the drive module or which is far away from the motor to avoid inexplicable damage.Package Included:1 x Brushless Motor Controller1 x connecting cableNote: 1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.2.Please allow slight manual measurement deviation for the data.Payment Payment must be completed within 5 days. If you have any problems about payment, please contact us via ebay message.Delivery details We only ship to confirmed ebay Order addresses. Please comfirm that your Order address is in line with your shipping address. Please kindly note that the combined shipping is not provided because the shipping fee is calculated by weight. Also, the each additional item means exactly the the same color and size. It takes about 7-15 working days to US; about 10-30 working days to other countries. Transit time may be a little delayed because of the bad weather and customs inspection. If you do not receive your item within 30 working days since payment finished, please contact us immediately for further assistance. Contact us We strive for 100% customer satisfaction! Positive Feedback is very important to us. If you have any questions, please feel free to contact us via "Ask seller a question" . We will reply your email within 24 working hours.
