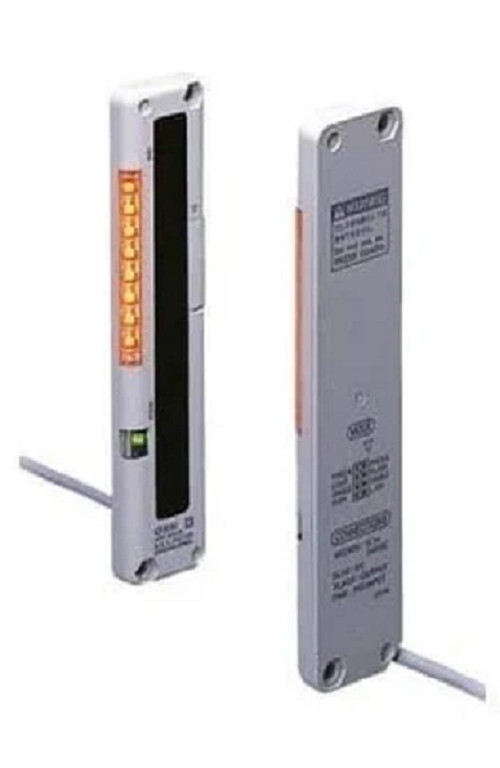

Panasonic NA1-PK5 NA1-5 Ultra-Slim Body Picking Sensor (SUNX)
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Brand | Panasonic |
| Type | Sensor |
| Model | NA1-PK5 |
| MPN | NA1-PK5 |
| Country/Region Of Manufacture | Japan |
TypeNPN outputPNP outputTypeStandard typeLong sensing range typeStandard typeLong sensing range typeModel No.NA1-PK5NA1-5NA1-PK5-PNNA1-5-PNCE marking directive complianceEMC Directive, RoHS DirectiveSensing height100 mm 3.937 inSensing range(Note 2)0.1 to 1.2 m 0.328 to 3.937 ft(0.05 to 0.5 m 0.164 to 1.640 ft when set to SHORT)0.2 to 3 m 0.656 to 9.843 ft(0.05 to 1 m 0.164 to 3.281 ft when set to SHORT)0.1 to 1.2 m 0.328 to 3.937 ft(0.05 to 0.5 m 0.164 to 1.640 ft when set to SHORT)0.2 to 3 m 0.656 to 9.843 ft(0.05 to 1 m 0.164 to 3.281 ft when set to SHORT)Beam pitch25 mm 0.984 inNumber of beam channels5 beam channelsSensing objectø35 mm ø1.378 in or more opaque object(completely beam interrupted object)Supply voltage12 to 24 V DC ± 10 % Ripple P-P 10 % or lessPower consumption(Note 3)Emitter: 0.5 W or less,Receiver: 0.8 W or lessEmitter: 0.6 W or less,Receiver: 0.9 W or lessOutputNPN open-collector transistor・Maximum sink current: 100 mA・Applied voltage: 30 V DC or less (between output and 0 V)・Residual voltage: 1 V or less (at 100 mA sink current)0.4 V or less (at 16 mA sink current)PNP open-collector transistor・Maximum source current: 100 mA・Applied voltage: 30 V DC or less (between output and +V)・Residual voltage: 1 V or less (at 100 mA source current)0.4 V or less (at 16 mA source current) Utilization categoryDC-12 or DC-13Output operationON or OFF when one or more beam channels are interrupted /ON or OFF when two or more beam channels are interrupted,selectable by operation mode switchShort-circuit protectionIncorporatedResponse time10 ms or less(when the interference prevention is used, in Light state: 30 ms or less, in Dark state: 13 ms or less)IndicatorsEmitterPower indicator: Green LED (lights up when the power is ON)Job indicator: Orange LED (lights up or blinks when the job indicator input is Low, lighting pattern is selected by operation mode switch)Power indicator: Green LED (lights up when the power is ON)Job indicator: Orange LED (lights up or blinks when the job indicator input is High, lighting pattern is selected by operation mode switch)IndicatorsReceiverOperation indicator: Red LED (lights up when one or more beam channels are interrupted, but lights up when two beam channels or more are interrupted in the double-beaminterruption mode)Stable incident beam indicator: Green LED (lights up when all beam channels are stably received)Job indicator: Orange LED (lights up or blinks when the job indicator input is Low, lighting pattern is selected by operation mode switch)Operation indicator: Red LED (lights up when one or more beam channels are interrupted, but lights up when two beam channels or more are interrupted in the double-beaminterruption mode)Stable incident beam indicator: Green LED (lights up when all beam channels are stably received)Job indicator: Orange LED (lights up or blinks when the job indicator input is High, lighting pattern is selected by operation mode switch)Interference prevention functionIncorporatedPollution degree3 (Industrial environment)ProtectionIP62 (IEC)Ambient temperature-10 to +55 ℃ +14 to +131 ℉(No dew condensation or icing allowed),Storage: -20 to +70 ℃ -4 to +158 ℉Ambient humidity35 to 85 % RH, Storage: 35 to 85 % RHAmbient illuminanceIncandescent light: 3,000 lx or less at the light-receiving faceVoltage withstandability1,000 V AC for one min. between all supply terminals connected together and enclosureInsulation resistance20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosureVibration resistance10 to 150 Hz frequency, 0.75 mm 0.030 in double amplitude in X, Y and Z directions for two hours eachShock resistance490 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times eachEmitting elementInfrared LED(Peak emission wavelength: 950 nm 0.037 mil, synchronized scanning system)MaterialEnclosure: Heat-resistant ABS, Lens cover: Acrylic, Indicator cover: AcrylicCable0.3 mm2 4-core (emitter: 3-core) oil resistant cabtyre cable, 2 m 6.562 ft longCable extensionExtension up to total 100 m 328.084 ft is possible for both emitter and receiver with 0.3 mm2, or more, cable.WeightNet weight:Emitter 80 g approx.Receiver 85 g approx.Gross weight: 270 g approx.Net weight:Emitter 70 g approx.Receiver 80 g approx.Gross weight: 270 g approx.Net weight:Emitter 80 g approx.Receiver 85 g approx.Gross weight: 270 g approx.Net weight:Emitter 70 g approx.Receiver 80 g approx.Gross weight: 270 g approx.
