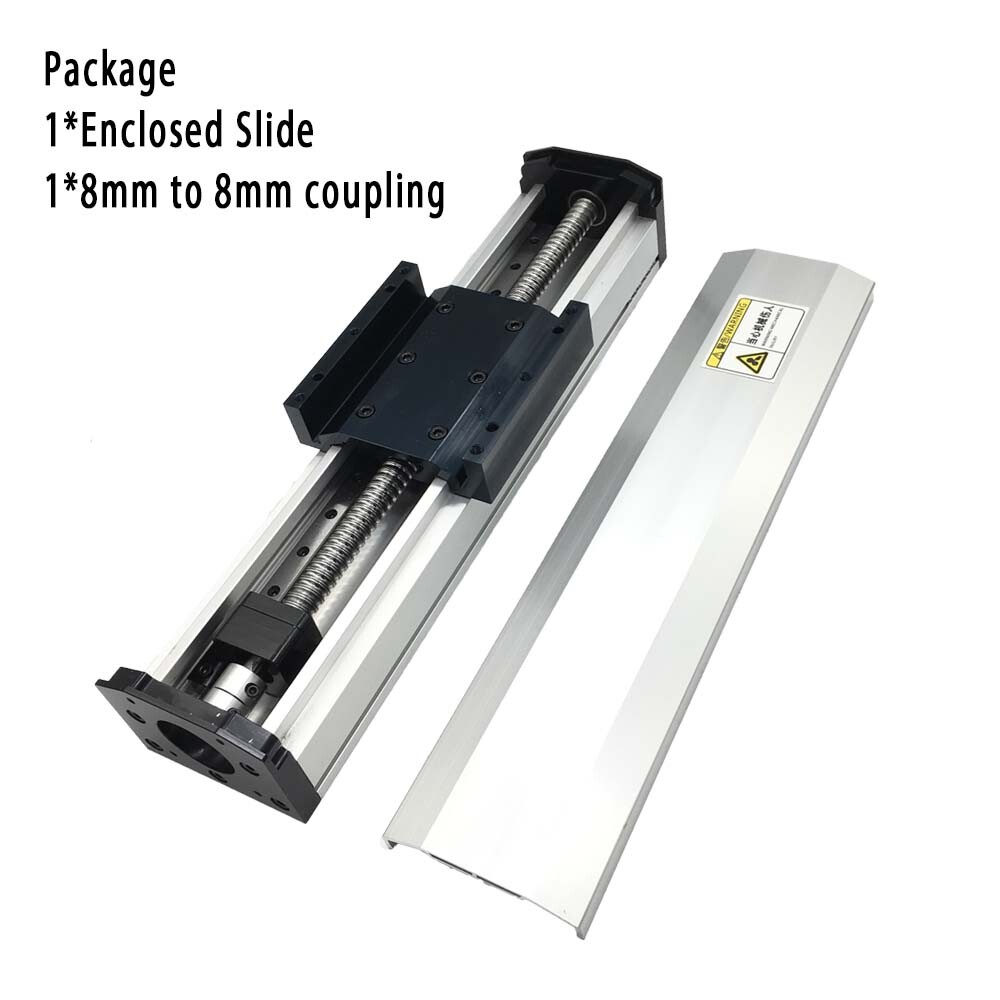

Nema23 Linear Rail Slide Table Motion System Motor Ball Screw Enclosed 70kg load
USD 134.55 USD
Specifications
| Stroke Length | 100mm (4 in) |
| Brand | TOSEASTARS |
| Model | Ballscrew type |
| Country/Region Of Manufacture | China |
| Voltage | 24V |
| Guide Width | 12mm |
| Model Number | QMF90 |
| Sliders Type | 4*MGN12C |
| Guide Rail Type | 2*MGN12 |
| Horizontal Load | 70KG (154.32lb Max) |
| Vertical Load | 35KG(77.16lb Max) |
| Module Width | 90mm(3.54 in) |
| Ballscrew Accuracy | C 7 |
| Repeat Positioning Accuracy | 0.03mm-0.05mm |
| MPN | QMF90 |
The QMF90 Precision Linear Slide combines a C7-grade SFU1605 ballscrew (0.03mm repeatability) with dual MGN12 linear rails, delivering 70KG horizontal load capacity and 250mm/s max speed. Its 90mm wide aluminum platform is ideal for CNC upgrades, 3D printers, and lab automation requiring rigid, high-precision motion control.
