Nanotec Brushless Motor w/ Gear Box BD42 + GP42
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Model | BD42 |
| Brand | Nanotec |

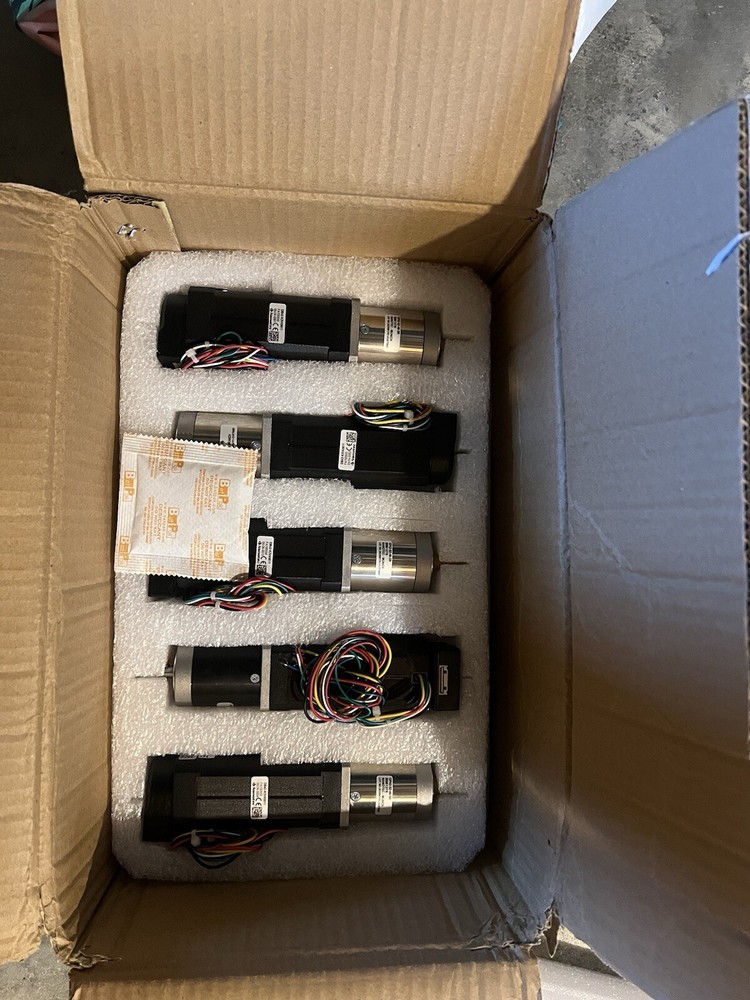

Lot of 10 Nanotec High Toque Brushless DC motors + gear boxes See photos for product numbers from mfg. Never used. Lot was built in May by Nanotec Munich Gearbox - https://www.nanotec.com/us/en/products/2728-gp42-s2-46-srMotor - https://www.nanotec.com/us/en/products/633-db42-brushless-dc-motor DB42 – Brushless DC motor BLDC motor with quiet running characteristics, high acceleration rates, a long service life and speeds of up to 14,000 rpm. By mounting a Nanotec encoder, this motor can be expanded into a high-performance servo motor for high speed ranges. For higher torques and a wider performance range Nanotec offers matching planetary gearboxes. GP42-S2-46-SR – High-torque planetary gearboxes Technical DataFor Motor Size45 mm (BLDC), NEMA 17 Efficiency85 %Rated Output Torque12.2 NmReduction Ratio45.82 Moment of Inertia0.22 kg mm²Operating Temperature-15 °C - 90 °CFlange Length L10.22 inAdmissible Axial Shaft Load890 NIP-Protection GearboxIP54 TypeStandard Bearing Max. Backlash60 ´(arc minutes)Max. Output Torque24.4 NmMax. Input Speed18000 rpmService Life10000 hLength "L"2 inWeight0.88 lbAdmissible Radial Shaft Load305 N
