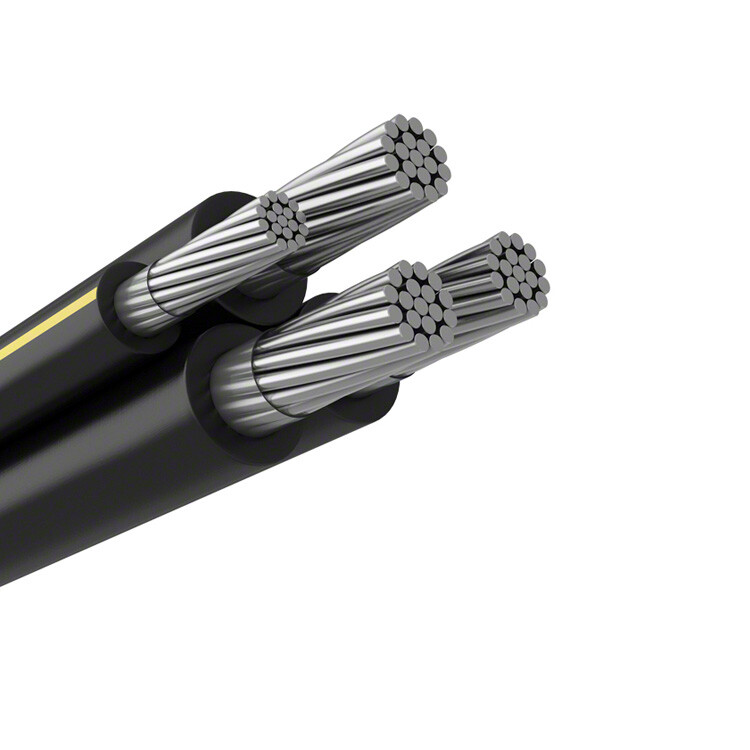

Dyke 2-2-2-4 Aluminum URD Underground Direct Burial Cable 600V
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Current Rating | 100 A |
| MPN | NNC1928 |
| Wire Gauge | 2 AWG (6.5 mm) |
| Sheath Color | Black |
| Brand | Nassau National Cable |
| Wire Style | Stranded |
| Voltage | 600 V |
| Conductor Material | Aluminum |
| Country/Region Of Manufacture | United States |
HomeView All ListingsStore PoliciesNewsletterFeedbackContact Us Store Categories Aluminum URD Cable Aluminum Service Drop Cable Aluminum XHHW Aluminum XLP USE Aluminum SER Alpha Wire Belden Cable Bus Drop Cable Copper SER Copper XHHW Copper XLP USE Diesel Locomotive Cable Festoon Cable Fire Alarm Cable High Temperature Wire Jumper Cable Mining Cable Type G & GG-C Thermostat Cable Power Power Cable NM-B Wire Security Fire Alarm Cable SIS Switchboard Wire Solar Photovoltaic PV Wire Stage Lighting Cable Submersible Pump Cable THHN THWN-2 Copper Wire Tray Cable Type W Power Cable UF-B Cable Welding Cable Dyke 2-2-2-4 Aluminum URD Direct Burial Cable 600V Lengths 50 Feet to 5000 Feet Click Thumbnails to Enlarge APPLICATION - Dyke 2-2-2-4 Aluminum URD cable is designed for use in secondary distribution circuits, where installed in duct or direct burial applications. Maximum operating temperature is not to exceed 90°C in wet and dry locations. Voltage rating is 600 volts. CONDUCTOR - Compressed 1350-H19 Series aluminum conductor. INSULATION - Cross-linked polyethylene (XLPE). CONDUCTOR IDENTIFICATION - Phase conductors are Black - Neutral Conductor has Yellow stripe. STANDARDS - ASTM B-230 Aluminum 1350-H19 Wire for Electrical Purposes - ASTM B-231 Concentric-Lay-Stranded Aluminum 1350 Conductors - ASTM B-609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes - ASTM B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire Construction - ICEA S-105-692 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables - Federal Specification A-A-59544A - RUS Accepted - Sunlight Resistant DISCLAIMER - Picture May Not Represent Actual Cable and Is Only Used As A Representation Please Refer to The Specifications For Product Accuracy. PRODUCT SPECIFICATIONS Size AWG 2 Number of Strands 7 Insulation Thickness (inches) 0.060 Outside Diameter (inches) 0.970 Ampacity (Direct Burial) 155 Amps Ampacity (In Duct) 115 Amps Weight (Lbs/1000ft) 360 Shipping ***Free shipping on most orders. Need the wire fast? Ask about our expedited shipping to get it to you on time. Signature required for all deliveries. Please note eBay's delivery dates are only estimates actual delivery dates may be faster or longer, please message us for exact delivery times.*** Payment & Returns ***All returns must be made within 30 days from the date of purchase or they will not be accepted. Nassau National Cable does not cover re-delivery fees, extraneous shipping expenses or change of address fees after shipping*** Feedback Feedback will be left as soon as feedback is left for us.
