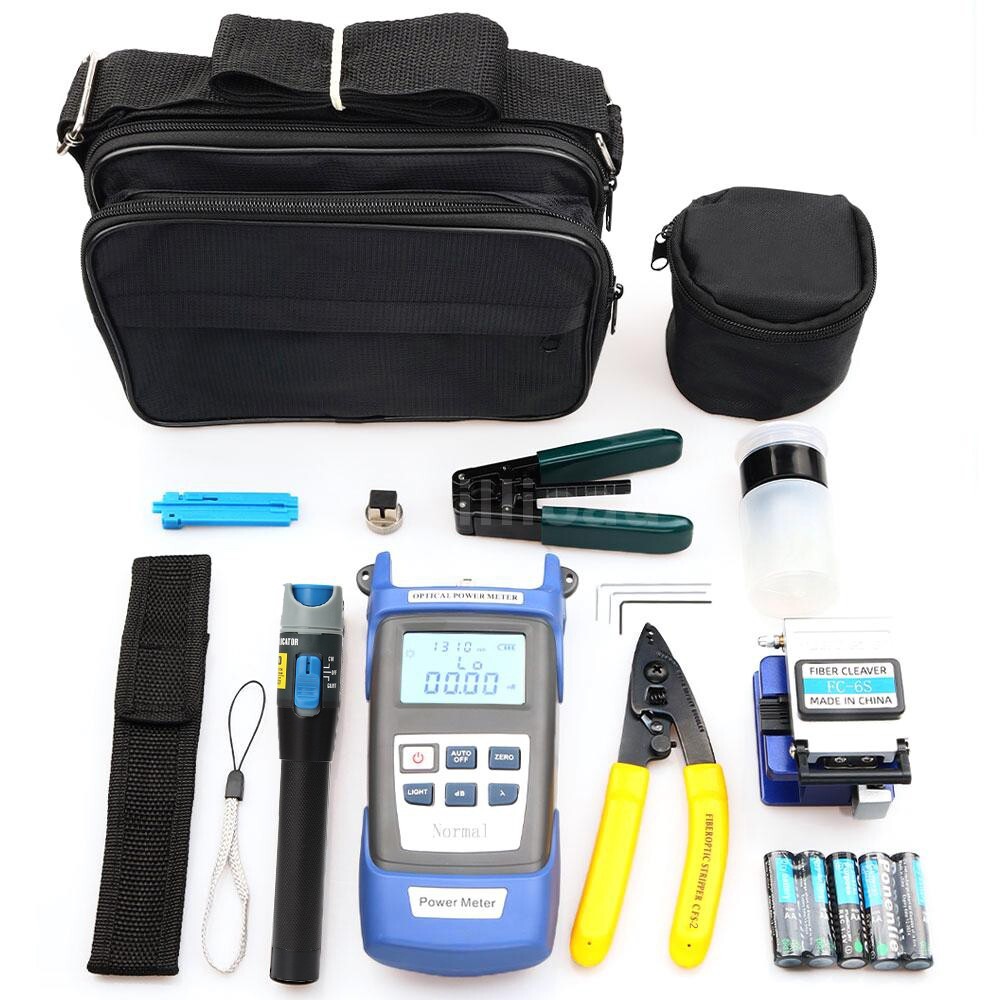

9 In 1 Fiber Optic FTTH Tool Kit with FC-6S Fiber Cleaver & Power Visible Meter
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Display Resolution | Linear Display 0.1% |
| MPN | Does Not Apply |
| Logarithmic Display | 0.01dBm |
| Brand | iMeshbean |
| Type | Optical fiber tool set |
| Model | FC-6S |
| Country/Region Of Manufacture | China |
| Probe Type | InGaAs |
| Power | 1mw |
Fiber Optic FTTH Tool Kit with FC-6S Cleaver Optical Power Meter Visual US 1.Self calibration2.More than 48 hours continuous working time3. Linear Display (mW) and Logarithmic display (dBm) show on the same screen4.Support for FC/SC/ST interface and quick switch5.Auto switch6.Backlight available Pictures Specifictions:1.Test Range: -70~+3dbm2.Probe Type: InGaAs3.Wavelength Range: 800~1700nm4.Standard Wavelength(nn): 850/980/1300/1310/1490/1550/16255.Display Resolution: Linear Display 0.1%; Logarithmic display 0.01dBm6.Working Temp(℃): -10~+60℃/14℉-140℉7.Storage Temp(℃): -25~+70℃/-13℉-158℉8.Auto Switch-off Time(min): 18min9.Battery working period: ≥48hrs10.Size(mm): 162x75x2711.Power: 3x AA batteries (batteries included) 12.Power:1mwfor FC 6S cutter Specification:1.Applicable bare wire diameter: 125μm2.Applicable fiber core number: single core (φ0.25 & 0.9mm) ~ 12 core ribbon core wire ~ 2.5 skin line3.Fiber cutting length: 9-16mm (φ0.25), 10-16mm (0.9mm)4.Size: 63 * 76 * 63mmVisual Fault Locator Specification:1. Output wavelength:650mm2. Output light power: >1mW3. Optical connector: universal connector4.Operating temperature:0~+60℃/32℉-140℉5. Storage temperature: -20~+70℃/-4℉-140℉6. Power supply: 2 x AA batteries(batteries included)7. Size: 175mm*26mm Package include:1 x Fiber Cleaver FC-6S1 x Optical Power Meter -70 to +3dBm1 x 1mw Visual Fault Locator 1 x Drop Cable Stripper 1 x Fixed-Length Stripper 1 x CFS-3 Fiber Optic Stripper 1 x Tool kit Carrying Bag 1 x 2 pc Allen adjustable tools1 x Alcohol bottle1 x Visual fault locator carrying bag1 x Optical power meter sc adapter1 x Fiber cleaver bag1 bag paper1 bag cottom swab5PC Batteries needed included Warranty If you have any questions you may reach us via ebay message. Get In Touch We warrant all products to be free from defects in material or workmanship for two month from date of purchase. We fully guarantee customers an exchange or refund within 14 business days of receipt if item DOA(damage on arrival). Warranty excludes normal product lifetime wear-out, wear and tear or abuse. Warranty does not apply to conditions resulting from misuse, abuse, negligence, accident, improper application, improper installation or alteration. For malfunction products under warranty period, please contact our customer service via EBay Message. Payment Only PayPal accepted. All orders delivered to Texas (TX) are charged the applicable sales tax. Shipment We only ship to paypal confirmed address. We will ship all orders asap. from Texas via USPS or UPS.( No service on Weekend and public holidays). Delivery time within the U.S. is usually just 3 to 5 business days, however in rare cases it could take 5 to 7 business days. No combined shipping discount offered and no pick-up service. Customer Service Customer Satisfaction is always our Top Priority. If you feel any dissatisfaction, please contact us via ebay message. A Merchandise Authorization Number (RMA#) is required for all need returned packages(After we have a fully communication). Please contact us to get an ""RMA"" number before you ship your items back to us. Items returned without an ""RMA"" number would be ignored or delayed in processing. back to us. Items returned without an ""RMA"" number would be ignored or delayed in processing.All NON-Seller Mistake returns for refund are subject to 20% re-stocking fee and buyer should pay for the return shipping fee and handle fee.(For example,you brought wrong item or cancelled order after item was shipped). All return products should be in brand new state with all accessories included. Refunds will be given via paypal only.
