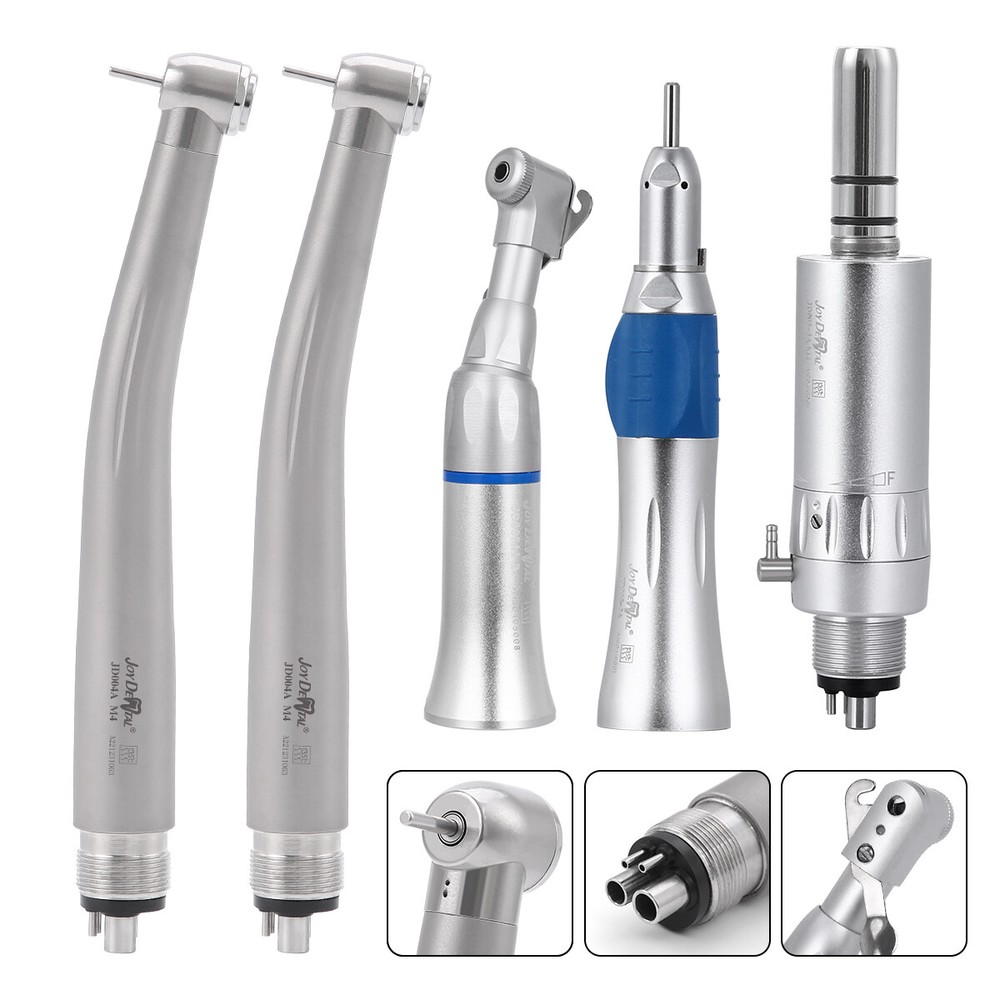

1 Set Estilo Dental 4 Agujero Alta y Baja Velocidad /Kit de Pieza de Mano de
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Head Diameter | φ11.2 mm |
| Power Source | Electric |
| Noise | ≤70dB |
| Hose Compatibility | 4 Hole |
| Water Pressure | 198Kpa (2 kg) |
| MPN | SJ1107100206 |
| Rotation Speed | 370,000-420,000 rpm |
| Intended Use/Discipline | Dental Laboratory |
| Brand | Joy Dental |
| Handpiece Type | High Speed+Low Speed |
| Model | JD005-16 M4S |
| Handpiece Angle | Contra Angle+Straight |
| Style | NSK Style |
| Head Hight | 13.14 mm |
| Chuck Type | Push button |
| Country/Region Of Manufacture | China |
Specification: High speed handpiece Description: Standard Push button type, high speed handpiece, Single-way water spray Needle Change Type Push button Air Pressure 180~250 KPa (1.8~2.5 kgf/cm2) Water Pressure 198Kpa (2 kg) Rotation Speed 370,000-420,000 rpm Head Hight 13.14 mm Head Diameter φ11.2 mm Bur Applicable φ1.59mm~φ1.6mm×21mm~23mm (diameter×length) Noise ≤70dB Low speed kits Features: - E-type connector - Wrench type - Precise technology, Steady, no vibration while revolving, offering a steady operation. - Suitable for any E-type handpiece accords with ISO standard - 135°C Autoclavable, suitable for both steam and chemical autoclave Contra angle handpiece - Low Speed 22,000-27,000 rpm. - The shank of the instrument mounted therein is 2.35 mm - Fastening of the instruments with a turning latch - Autoclavable 135°C - For any lab or E-type motors Straight Nosecone - Working pressure: 0.3MPa ; - 0.25MPa (Measure meter is installed at the end of air motor to measure the air pressure). - Revolution: about 22000-27000r/min (adjustable between clockwise or anticlockwise) - Noise: ≤68dB - Air consumption: about 56L/min - Ratio: 1:1 - Max speed of contra angle: 25000rpm/min. Air Mortor - Supply air pressure: 245-392KPa (2.5-4kgf/CM2) - 1:1 Direct Drive - 4 Hole - Max speed 20,000 min-1 Specifications Air-in Pressure(kg/c㎡) Motor Rotation(rpm) Air Wastage:(N1/min) 2.5 22,000 42 3 25,000 51 4 27,000 72 Packing List: - High speed handpiece push button 4 Holes : 2 each - E-type air motor 4-Holes: 1 each - Straight nose cone: 1 each - Contra Angle handpiece: 1 each - Water spray nozzle: 1 each - Oil spray nozzle: 1 each - CAP Spanner: 2 FDA Statement The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, you can bid on this item only if you are an authorized purchaser. If the item is subject to FDA regulation, I will verify your status as an authorized purchaser of this item before shipping of the item. Seller name:MXDENT City,State:SHENZHEN,China Telephone number:0755-36925817
