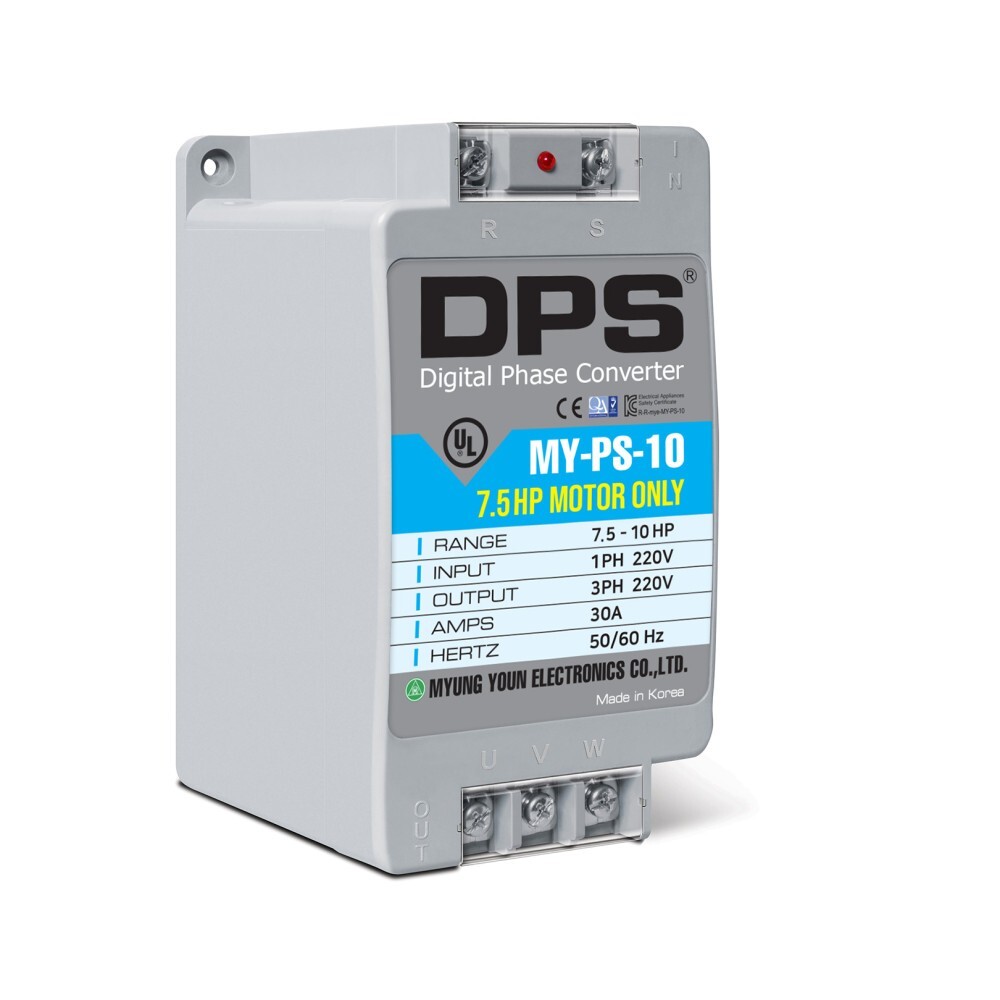

1 Phase to 3 Phase Converter, Must be only used on 7.5HP(5.5kW) 23Amps 200V-240V
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Mounting Style | Stand Alone |
| Starting/Maximum Load Horsepower | 10HP |
| Conversion Type | 1 to 3 Phase |
| Output Current | 23 A |
| Input Voltage | 200 V - 240 V |
| MPN | MY-PS-10 |
| Item Depth | 4.1 |
| Operating Frequency | 50 Hz - 60 Hz |
| Brand | DPS |
| Type | Digital phase converter |
| Unit Type | Unit |
| Horsepower | 7.5 hp |
| Item Height | 5.1 |
| Continuous/Minimum Load Horsepower | 7.5HP |
| Country/Region Of Manufacture | Korea, Republic of |
| Output Voltage | 200 V - 240 V |
| Input Current | 23 A |
| Item Width | 7.1 |
Free eBay listing template designed by dewiso.com [ Delivery time ]Around 4 - 5 business days (DHL or FedEx courier service)Customs duties, taxes and any importing fees incurred at the customer's location are to be paid by the customer DPS is a device that can run a 3-phase motor with single-phase power and can be used for various machines at your workshop and home. Precautions for selecting a DPS model Before purchasing a DPS, be sure to check that the DPS model is compatible with your motor specifications. MY-PS-10 model should be used for a 7.5HP(5.5kW) 23amps 3-phase motor. Check the motor’s rated current(A), horsepower(HP), and voltage(V). DPS is a product that drives a 200V-240V 3-phase motor with a single-phase 220V - 240V. DPS must be used appropriately for each motor specification. Be sure to refer to the DPS selection table to select a DPS model appropriate for the motor specifications. One DPS must be used for only one motor. One DPS should never be used on multiple motors. If you are unsure about selecting a DPS model, contact the seller or manufacturer. After purchasing, thoroughly read the user manual enclosed with the product and then install the DPS on the motor. Installation method is simple. Simply connect the 2 input wires to the DPS input and the 3 wires of the motor to the DPS output. MY-PS-10 model should be used for a 7.5HP(5.5kW) 23amps 3-phase motor. Do not use a DPS model that is not suitable for your motor specifications. Please check the voltage(V), rated current(A), and horsepower(HP) of the motor, and purchase a DPS by referring to the DPS model selection table. In special cases, be sure to consult with the manufacturer and seller. One DPS must be used for one motor only. Input/output voltage of DPS is 200V-240V. The voltage of the motor should be 200V-240V. The efficiency is around 90% when using a DPS model that matches the electric motor specifications. The thickness of wires should be suitable for current. DPS does not operate on 3-phase motor installed with 3-phase brake. DPS only works on 3-phase motor installed with a single-phase brake. You can check 3-phase on the output of DPS when your motor is running. If your motor is not running, you cannot check the three-phase from the output of DPS. If a magnetic contactor is connected to the motor and DPS, you must connect two control wires of the magnetic contactor to ‘U’ and ‘W’ of the DPS output. If the motor does not work even though the power is turned on after connecting the DPS and the motor, please try swapping the positions of wires connected to ‘U’, ‘V’, and ‘W’ of the DPS output at least 3 times. When the motor load is less than 50%, there may be an imbalance from the voltages and currents output from the DPS. Normally, when the motor load is over 50%, voltages and currents will be balanced. Contact us We can be contacted at any time through eBay messages if you have any questions, comments or product requests. We will respond to you within 24 hours and do our best to help you out! We encourage our customers to contact us with any questions or concerns! We'd like to be sure you are completely satisfied with your purchase. Warranty Policy 1-year warranty against the Manufacturer Defects while in use from the date of purchase. However, even if the failure is caused by the customer's negligence or natural disasters, it is charged and the shipping cost is the customer's responsibility. Shipping Delivery time : around 4 - 5 business days (DHL or FedEx courier service) Applications High Pressure Washer, Hoists, Compressors, Machines for Pumping, All products driven by 3 phase motors, and All motors for industrial and domestic purposes. Copyright. Myung Youn Electronics Co., Ltd
