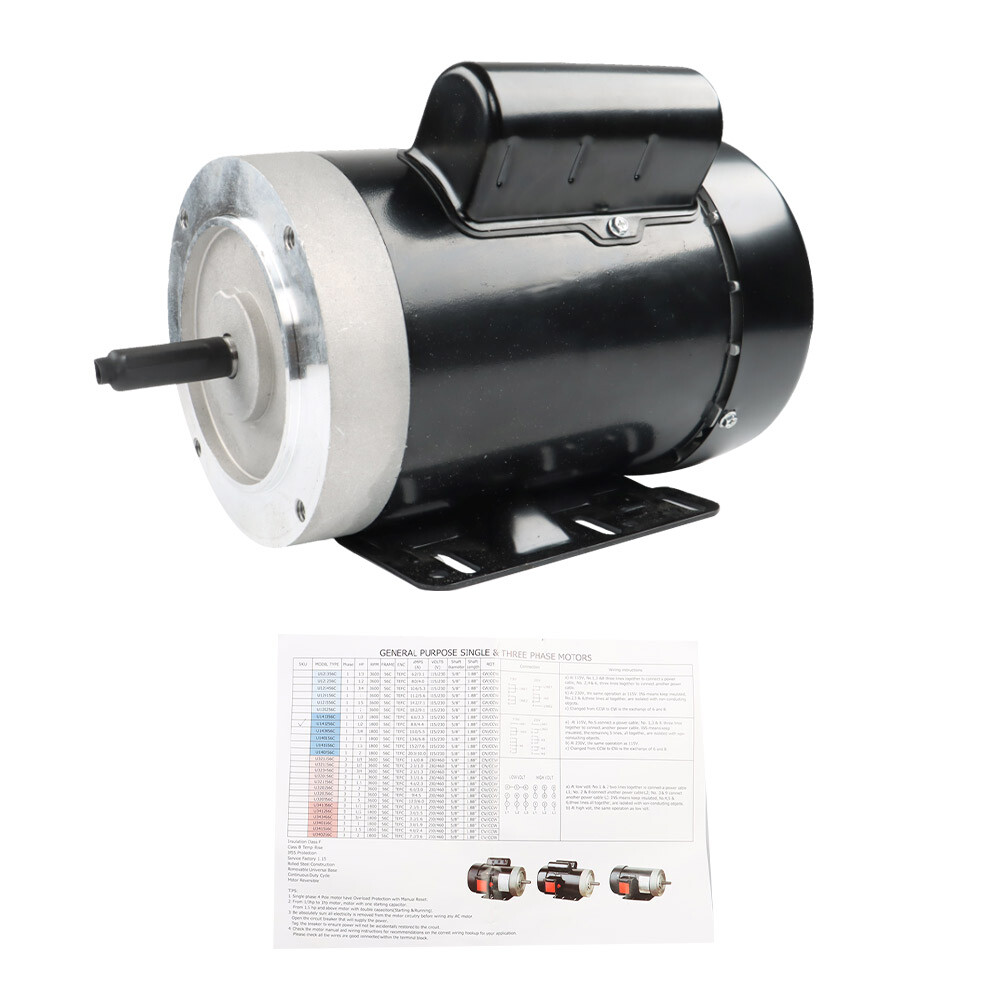

1/2 HP Electric Motor 56C Frame 1750 RPM 1 Phase TEFC 60Hz General Purpose
USD 133.99 USD
Specifications
| Brand | findmall |
| MPN | IN2936817AL |
| Rated Load (HP) | 1/2 |
| Nominal Rated Input Voltage | 115 V, 230 V |
| AC Phase | Single Phase |
| Special Motor Construction | Spindle Motor |
| Shaft Diameter | ５/8 in |
| AC Motor Type | Induction/Asynchronous |
| IEC Frame Size | 56C |
| AC Frequency Rating | 60 Hz |
| Housing Material | Rolled steel shell |
| Reversible/Non-Reversible | Reversible |
| Mounting Type | Based-mounted |
| Synchronous Speed | 1800 |
| IP Rating | IP55 |
| Insulation Class | F (Max 311°F) |
| Amps | 8.8 A/4.4 A |
| Model | General Electric Motor |
| Protector | Yes |
| Rotational Speed | 1750RPM |
| Shaft Length | 1.88in |
| Manufacturer Warranty | 1 year |
| Material | Steel shell |
Specification： .
