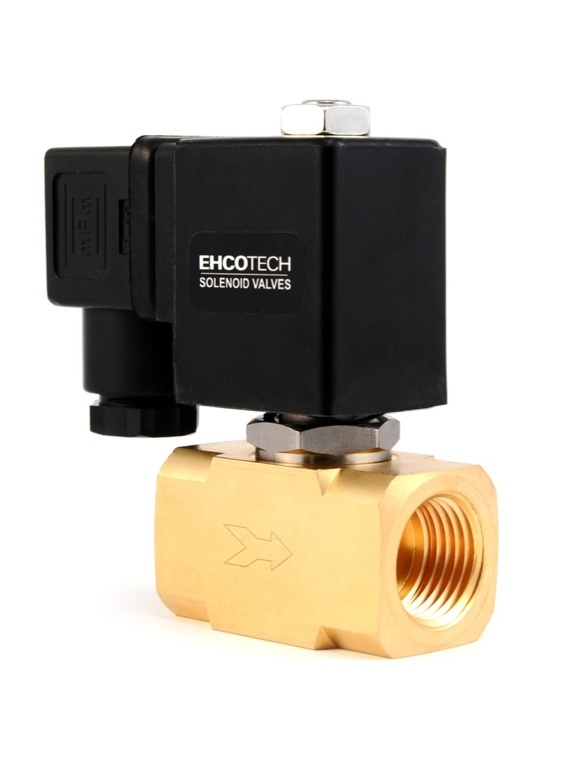

1/2″12VDC Electric Aux Fuel Tank Valve for Trucks Gasoline Diesel 12 Volt DC
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 60 Days |
| Refund Will Be Given As | Money Back |
| Manufacturer | EHCOTECH |
| Size | 1/2" NPT |
| Valve Body | Brass |
| Valve Seal | FKM (Viton) Rubber |
| Operation Type | Direct Acting |
| Media | Diesel, Gasoline etc |
| Voltage | 12VDC |
| Valve Type | 2-Way, Normally Closed |
| MPN | B25V-1/2-CD-12VDC |
| Brand | EHCOTECH |
Quality valves from a real company — buy with confidence. Best warranty and parts availability. Ships within 24 hours from San Diego, California Multiple Shipping Options Free shipping General 1/2" NPT inlet and outlet ports Normally Closed (N/C) Direct acting valve 1/4" internal orificeTwo 5 mm machine screw holes on bottom for mounting Coil / Electrical 12-Volt DC (1.2 A)Epoxy encapsulated coilDIN connector for easy wiring Pressure and Temperature 0 to 60 PSI (0 to 4 BAR) 265° F (130° C) Max Media Temp Valve Materials Brass bodyStainless Steel Internal Components FKM (Viton) rubber diaphragm Suitable Media Gasoline Diesel Dimensions Height: 3-3/8" Length: 2-3/4" Width: 2" Weight: 1 lb 4 oz GENERALWe stock this valve specifically for auxiliary fuel tanks installations although it could be used for low pressure gas applications and many other low pressure and gravity feed applications. VALVE COIL / ELECTRICAL The valve coil is epoxy encapsulated and comes with a DIN connector. Your electrical cable or wires will be run into the connector . The connector has screw-in terminals which make the wiring easy (wiring directions are included with the valve). The coil is rated for continuous duty, which means that the temperature will stabilize at a safe level and will not continue to rise indefinitely. As with most continuous duty rated valves, the coil may still get warm or even hot during long activation periods. This is completely normal for most solenoid valves. PIPE THREAD INFORMATION Pipe thread sizes can be confusing if you are not familiar with the standard. The table below shows the most common NPT (National Pipe Thread) sizes, their equivalent outer thread diameters, and the number of threads per inch (TPI): Thread Size Outer Thread Diameter TPI 1/8" NPT 0.405" 27 1/4" NPT 0.540" 18 3/8" NPT 0.675" 18 1/2" NPT 0.840" 14 3/4" NPT 1.050" 14 1" NPT 1.315" 11.5 TECH SUPPORT / CUSTOMER SERVICE We care about our customers. Please contact us if you need any help or tech support! PARTS AVAILABILITY We carry repair kits and coils for most of our valves. Please contact us for pricing and availability. SHIPPING OPTIONS FREE shipping is offered on most items via domestic economy shipping. The Priority Mail option gives a 2 to 3 day delivery time within the contiguous U.S. for a flat rate of $3.99 per order. See all Domestic and International shipping options and prices under eBay's "Shipping and Payments" tab. 12-MONTH WARRANTY Our warranty works without hassles. All replacements are quickly shipped from our warehouse in San Diego, California. You are responsible for the cost of shipping the defective item back to us; we gladly cover shipping cost back to you. If time is of essence, make sure to call us first. We understand that down-time can be expensive and we will do our best to work with you.Please note that diaphragms and coils are considered "wear and tear" items and are not typically covered by the warranty. 30-DAY RETURNS If you are not happy with our products for any reason, you may return them for a full refund (excluding shipping charges) within 30 days of the purchase. OEM CUSTOMERS AND LARGE QUANTITY ORDERS We work with Original Equipment Manufacturers (OEMs) on regular basis. Please contact us for OEM pricing and/or large quantity discounts. USE THE STORE CATEGORIES ON THE TOP LEFT SIDE TO FIND OUR OTHER PRODUCTS. _gsrx_vers_486 (GS 6.5.1 (486))
